CE
RoHS
Product number:
70591
Direktverbinder Einfarbig 8mm IP67
Product information "Direktverbinder Einfarbig 8mm IP67"
- Scope of delivery: 3 direct connector

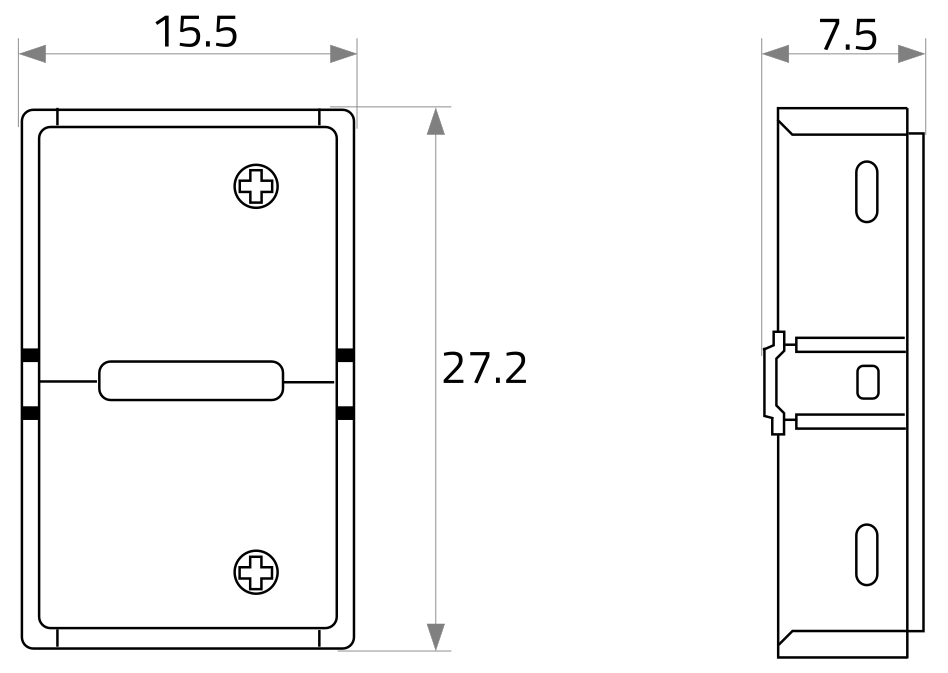

- LxWxH in mm: 27.2 x 15.5 x 7.5
- Suitable for following LED strips:
- VARDAflex Superior IP67: 79525, 79527, 79528
- VARDAflex ECO IP66: 82565, 82567, 82568
- VARDAflex Plus IP68: 88164, 88165
- VARDflex IP68: 88560, 88561, 88562, 88563, 86564, 86565
- max. current carrying capacity: 5 A (12V/60W, 24V/120W)
- Silicone tube 89998 is required for sealing (available separately)
Technical Data
| BAR code: | 4012094705910 |
|---|---|
| Width: | 15 mm |
| Height: | 7 mm |
| Length: | 27 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 5000 mA |
| Temperature range: | -20 - 45 |
| IP protection rating: | 67 |
| Catalog color code: | farblos |
| Leuchte: | without |
| Voltage: | 3-24 V |
| Gehaeuse code: | Kunststoff |
| Re skus: | 70590,82565,82567,82568,86564,86565,89998 |
| Ecodesign: | not assigned |
