Product number:
70222

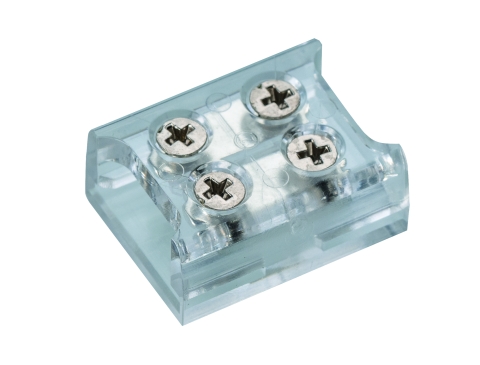

Direktverb. Screw Einf.10mm IP20
Product information "Direktverb. Screw Einf.10mm IP20"
- strip to strip connector for single-colour LED strips 10 mm
- with screw contacts for safe contacting
- max. current carrying capacity: 6 A (12V/72W, 24V/144W)
- LxWxH in mm: 13.4 x 11.5 x 6.5
- suitable for the following LED strips:
- VARDAflex Eco Standard REACH30: 82317, 82318
- VARDAflex Eco REACH20: 82205-V2, 82207-V2, 82208-V2
- VARDAflex Eco Plus REACH15: 82215-V2, 82217-V2, 82218-V2
- VARDAflex Nova Plus: 82861
- VARDAflex Quantum Plus: 86325, 86327, 86328
- VARDAflex Plus DTW: 79141
- VARDAflex Plus Profi DTW: 79040
- VARDAflex Energy: 79465, 79467
Technical Data
| BAR code: | 4012094702223 |
|---|---|
| Width: | 11 mm |
| Height: | 6 mm |
| Length: | 14 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 6000 mA |
| Temperature range: | -10 - 45 |
| IP protection rating: | 20 |
| Catalog color code: | farblos |
| Leuchte: | without |
| Voltage: | 3-24 V |
| Gehaeuse code: | Kunststoff |
| Ecodesign: | not assigned |
