CE
Only suitable for indoor installations
RoHS
Product number:
89990

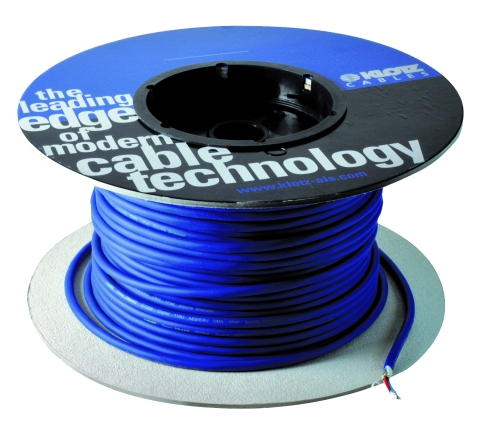

DMX Digitalkabel 2 Adern+Sch.
Product information "DMX Digitalkabel 2 Adern+Sch."
- conductor: stranded tinned copper, 7x 0.2 mm (AWG 24/7)
- cross section: 0.22 sq mm
- insulation: foam-skin PE
- core arrangement: 2 cores twisted to a pair
- shielding: AL/PETP-foil + tinned stranded drain wire + tinned copper braid
- (coverage 85%)
- outer jacket: PVC, matt
- overall diameter: 6 mm
- min. bending radius: 30 mm
- working temperature: -20° C - +70° C
- conductor resistance: < 85 ohm/km
- capacitance: 47 pF/m
- characteristic impendance: 110 ohm
- attenuation (dB/100m): 1 MHz - 2.3 / 3 MHz - 3.9 / 10 MHz - 6.9
- insulation resistance: > 30 Gohm x km
- test voltage: cond./cond. 1200 V - cond./shield 500V
- The sturdy digital 110 ohm cable for the transmission of digital AES/EBU audio
- signals and digital DMX light control signals. The benefits of the cable are its
- ultra-low capacitance and attenuation constant as well as extremely dense
- shielding: the requirements for interference-free connection over long distances
Technical Data
| BAR code: | 4012094899909 |
|---|---|
| Length: | 1000 mm |
| Unit Code: | meter |
| Customer discount group code: | ST |
| Outer diameter: | 6 mm |
| Lumen per LED (lm): | 0,00 lm |
| Temperature range: | -20 - 70 |
| IP protection rating: | 20 |
| Catalog color code: | blau |
| Leuchte: | without |
| Gehaeuse code: | Kunststoff |
| Ecodesign: | not assigned |
