Product number:
80207

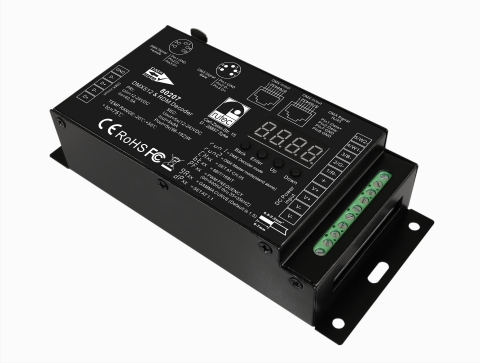

DMX Aktor Pro 960W/24V 5-farbig
Product information "DMX Aktor Pro 960W/24V 5-farbig"
- DMX Actuator Pro
- for indoor use, IP20
- DMX512
- Protection class III, CE, RoHS, REACH
- Master (stand-alone) & Slave (DMX) mode with RDM function
- Metal housing with digital display for direct display of the DMX parameters
- With several types of DMX inputs / outputs: RJ 45, XLR 5 pin.
- and normal screw contacts.
- PWM frequency adjustable from 500 Hz to 35 kHz
- 8/16 bit resolution adjustable
- DMX inputs and outputs galvanically isolated
- 1-5 channels and 1-5 addresses adjustable
- max. 8A per channel
- Input: 12-24 V DC
- Output:12-24 V DC
- Power: 12V 96W per channel / 24V 192W per channel
- LxWxH in mm: 165 x 73 x 39.5
- temperature range: -20°C bis +50°C
Technical Data
| BAR code: | 4012094802077 |
|---|---|
| Width: | 73 mm |
| Height: | 39 mm |
| Length: | 165 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 40000 mA |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 480-960 W |
| Catalog color code: | schwarz |
| Leuchte: | without |
| Input voltage: | 12-24 |
| Output voltage: | 12-24 |
| Gehaeuse code: | Stahl |
| Re skus: | 88458 |
| Ecodesign: | not assigned |
