CE
Only suitable for indoor installations
Protection class III
RoHS
Series connection
Product number:
80291

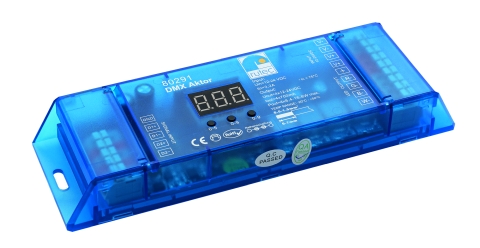

DMX Aktor 700mA mehrfarbig
Product information "DMX Aktor 700mA mehrfarbig"
- rutec DMX-actuator
- 1-4 adresses
- 4 channels for single or multicolor constant current LEDs 700mA
- max. 16,8 W (24 V) per channel
- DMX512
- DMX address freely adjustable and visible via digital display
- for indoor use
- IP20
- protection class III, CE, RoHS
Technical Data
| BAR code: | 4012094802916 |
|---|---|
| Width: | 53 mm |
| Height: | 23 mm |
| Length: | 166 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 700 mA |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 33,6-67,2 W |
| Catalog color code: | blau |
| Leuchte: | without |
| Input voltage: | 12-24 |
| Output voltage: | 12-24 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 80520,85271,89990 |
| Auslaufartikel: | Yes |
| Ecodesign: | not assigned |
