Product number:
80200-V2

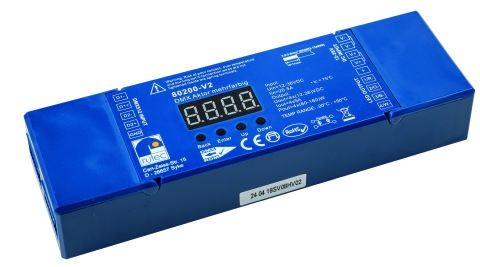

DMX Aktor 240W/12V 480W/24V mehrfarbig
Product information "DMX Aktor 240W/12V 480W/24V mehrfarbig"
- DMX Aktor DC
- DMX512
- Master (stand-alone) & Slave (DMX) mode with RDM function
- PWM frequency settable from 500 Hz to 35 kHz
- 8/16 bit adjustable resolution
- 1-4 channels
- 1-4 adjustable adresses
- max. 5A per channel
- DMX address freely adjustable
- and visible via digital display
- for indoor use
- IP20
- protection class III,CE,RoHS,REACH
- input:12V DC-24V DC
- output:12V DC-24V DC
- power: 12V 60W per channel / 24V 120W per channel

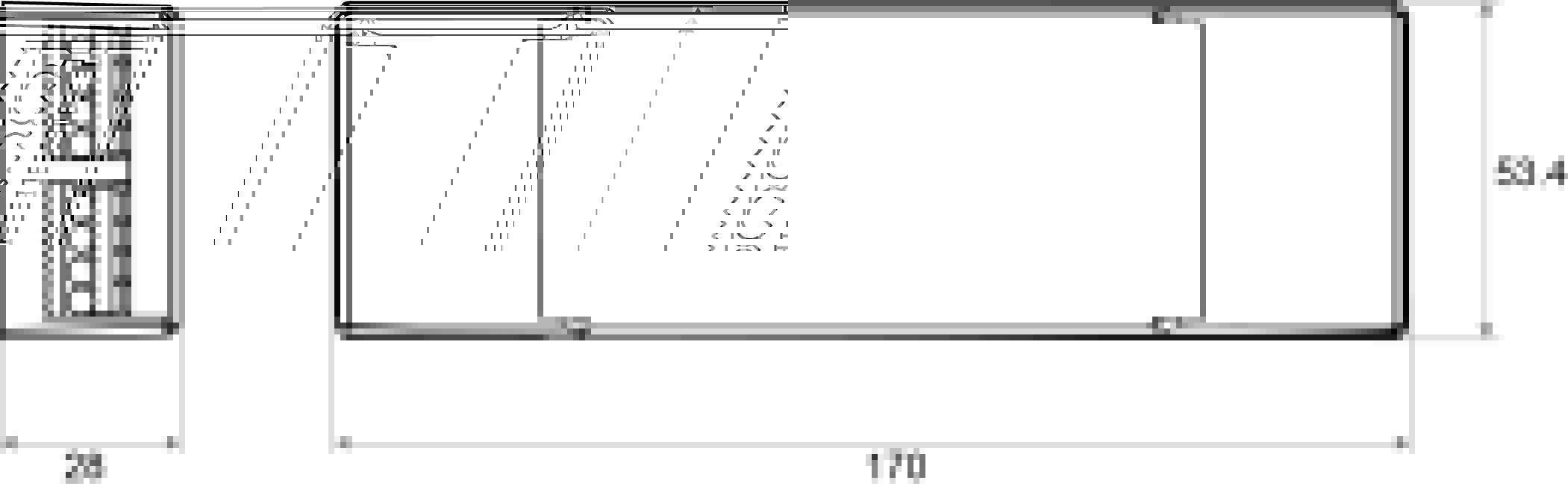

- LxWxH in mm: 178 x 53,4 x 28
- temperature range: -20°C to +50°C
Technical Data
| BAR code: | 4012094803005 |
|---|---|
| Width: | 53 mm |
| Height: | 28 mm |
| Length: | 170 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 20000 mA |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 240-480 W |
| Catalog color code: | blau |
| Leuchte: | without |
| Input voltage: | 12-24 |
| Output voltage: | 12-24 |
| Gehaeuse code: | Kunststoff |
| Ecodesign: | not relevant |
