CE
Independent converter
Only suitable for indoor installations
Parallel connection
Protection class II
RoHS
Product number:
80781

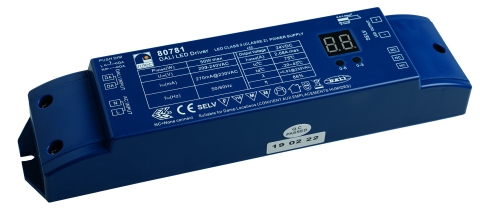

DALI+Push Dimm-Aktor 200-240V 24V-/50W
Product information "DALI+Push Dimm-Aktor 200-240V 24V-/50W"
- DALI + push dimming actuator AC 50W
- 1 address, 1 channel single-colour
- for indoor use, IP20
- DALI address manually adjustable and
- visible using digital display
- Automatically addressable from master controller
- in acc. w. DALI standard protocol IEC60929
- suitable for standard DALI devices
- Device Type: DT6
- Protection class II CE ROHS
- dimming range: 0,1-100%
- Input voltage: 200-240 V AC
- Output voltage: 24 V DC
- Power: 50 W
- Temperature range: -20°C bis +50°C
- LxWxH in mm: 210 x 50 x 32,5
Technical Data
| BAR code: | 4012094807812 |
|---|---|
| Width: | 50 mm |
| Height: | 32 mm |
| Length: | 210 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 2083 mA |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 50 W |
| Catalog color code: | blau |
| Leuchte: | without |
| Input voltage: | 200-240 |
| Output voltage: | 24 |
| Gehaeuse code: | Kunststoff |
| Effizienz: | 86 |
| Auslaufartikel: | Yes |
| Ecodesign: | not assigned |
