CE
DALI
Only suitable for indoor installations
Protection class II
RoHS
TÜV Rheinland approved
Product number:
80496

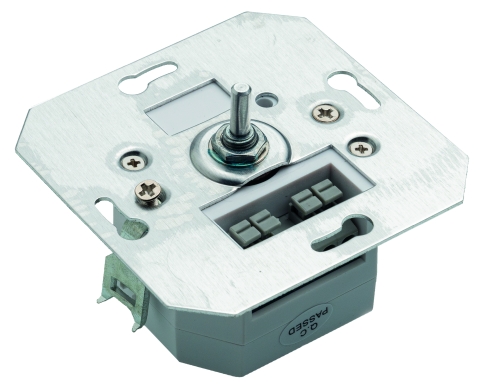

DALI Power Drehpotentiometer
Product information "DALI Power Drehpotentiometer"
- for indoor use
- Material: plastic, aluminium
- IP20
- Protection class II, CE, RoHS, TÜV Rheinland
- Voltage: 100 - 240 V AC, 50 Hz
- Maximum operating power: 2,3 W
- Signal: DALI
- Device Type: DT6 (Broadcast)
- Cable cross-section at terminal: 1,0 - 4,0 sq mm
- in acc. w. DALI standard protocol IEC 62386-102, IC 62386-207
- suitable for standard DALI devices
- Dimmer range 1 - 100 %
- several DALI power potentiometer per DALI bus line possible
- Minimum brightness value adjustable
Technical Data
| BAR code: | 4012094804965 |
|---|---|
| Width: | 71 mm |
| Height: | 50 mm |
| Length: | 71 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 100 mA |
| Installation depth: | 34 mm |
| Temperature range: | to 50 |
| IP protection rating: | 20 |
| Catalog color code: | stahl |
| Leuchte: | without |
| Input voltage: | 100-240 |
| Gehaeuse code: | Kunststoff |
| Ecodesign: | not assigned |
