CE
DALI
Only suitable for indoor installations
Power factor correction
Protection class II
RoHS
Series connection
Product number:
80791

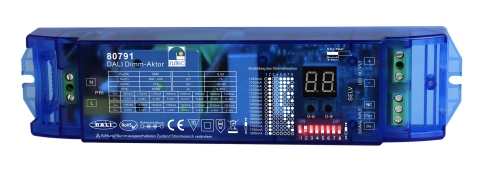

DALI Dimm-Aktor 100-240V
Product information "DALI Dimm-Aktor 100-240V"
- 1 adress - 1 channel single colour
- DALI address manually adjustable and visible using digital display.
- Automatically addressable from master controller.
- In acc. w. DALI standard protocoll IEC60929, suitable for
- standard DALI devices
- for indoor use
- IP20
- Device Type: DT6
- Protection class II, CE, RoHS
- Dimming range: 0-100%
- Input: 100-240V AC
- Output max: see instructions
- LxWxH in mm: 210 x 50 x 32
- Temperature range: -20° C bis +50° C
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094807911 |
|---|---|
| Width: | 50 mm |
| Height: | 32 mm |
| Length: | 210 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 1050-1800 mA |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 50 W |
| Catalog color code: | blau |
| Leuchte: | without |
| Input voltage: | 200-240 |
| Output voltage: | 5-48 |
| Gehaeuse code: | Kunststoff |
| Toleranz: | 5 |
| Effizienz: | 88 |
| Auslaufartikel: | Yes |
| Ecodesign: | not assigned |
