CE
Only suitable for indoor installations
Protection class III
RoHS
Series connection
Short circuit protection
Product number:
80730

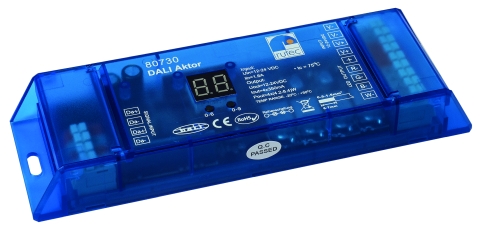

DALI Aktor 350mA mehrfarbig
Product information "DALI Aktor 350mA mehrfarbig"
- 4 adresses - 4 channels, multicolour, constant current
- LED dimming actuator for digital dimming with smooth control behavior
- 4 adresses / independent channels 350 mA
- Power per output: 4,2W (12V); 8,4W (24V)
- DALI address manually adjustable and visible via digital display.
- Automatically addressable by the master controller.
- According to DALI standard protocol IEC60929,
- suitable for standard DALI devices
- Device Type: DT6
- for indoor use
- IP20
- Dimming range: 0,1-100%
- 256 soft shades of grey
- Protection class 3, CE, RoHS, REACH
- Protection against short circuit and overheating
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094807300 |
|---|---|
| Width: | 53 mm |
| Height: | 23 mm |
| Length: | 166 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 16,8-33,6 W |
| Catalog color code: | blau |
| Leuchte: | without |
| Input voltage: | 12-24 |
| Output voltage: | 12-24 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 45101,85271 |
| Auslaufartikel: | Yes |
| Ecodesign: | not assigned |
