CE
DALI2
Disposal instructions according to 2012/19/EU
Independent converter
Only suitable for indoor installations
Parallel connection
Protection class III
REACH
RoHS
Product number:
80710-V2

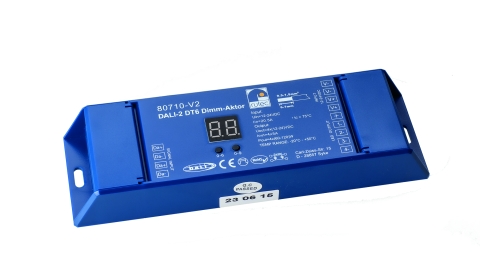

DALI-2 Push Dimm-Aktor DC
Product information "DALI-2 Push Dimm-Aktor DC"
- DALI-2 LED dimmer for digital dimming with soft control behavior
- 1 address, 4 channels synchronous
- DALI address manually adjustable and visible via digital display
- automatically addressable from master
- according to DALI standard protocol IEC62386-101, -102, -207
- with push-dim function
- IP20
- device type: DT6
- dimming range: 0-100%
- protection class III, CE, RoHS, REACH
- input: 12-24 V DC
- output: 12-24 V DC PWM (1500 Hz)
- power: 4x60W (12V DC), 4x120W (24 V DC)

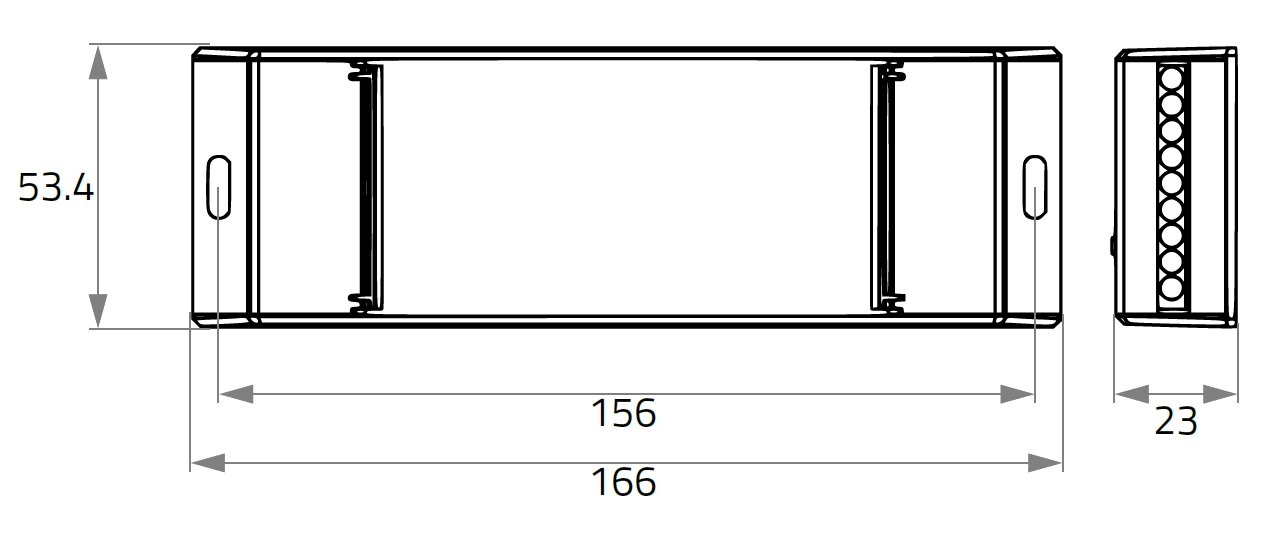

- dimensions: 166 x 53.4 x 23 mm
- temperature range: -20°C to +50°C
Technical Data
| BAR code: | 4012094808109 |
|---|---|
| Width: | 53 mm |
| Height: | 23 mm |
| Length: | 166 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 20000 mA |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 240-480 W |
| Catalog color code: | blau |
| Leuchte: | without |
| Input voltage: | 12-24 |
| Output voltage: | 12-24 |
| Gehaeuse code: | Kunststoff |
| Ecodesign: | not relevant |
