CE
DALI2
Disposal instructions according to 2012/19/EU
Independent converter
Only suitable for indoor installations
Parallel connection
Protection class III
REACH
RoHS
Short circuit protection
Product number:
80705-V2

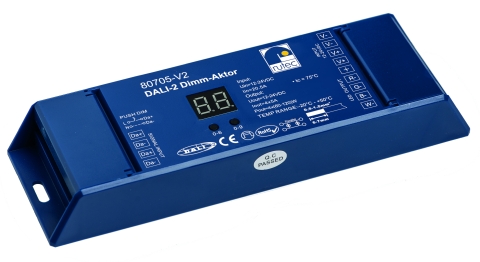

DALI-2 Push Dimm-Aktor DC
Product information "DALI-2 Push Dimm-Aktor DC"
- LED DALI-2 dimming actuator
- with smooth dimming curve
- 1-4 addresses 1-4 channels
- DALI address manually adjustable
- and visible via digital display
- automatically addressable by the master
- according to DALI standard protocol IEC62386
- with push-dim function
- IP20
- Device Type: DT6
- dimming range 0,1 - 100% linear dimming curve
- protection class III CE ROHS REACH
- protection against short circuit, overtemperature and overload
- input: 12 V DC-24 V DC
- output: 12 V DC-24 V DC
- power: 4 x 60W (12 V DC), 4 x 120W (24 V DC)

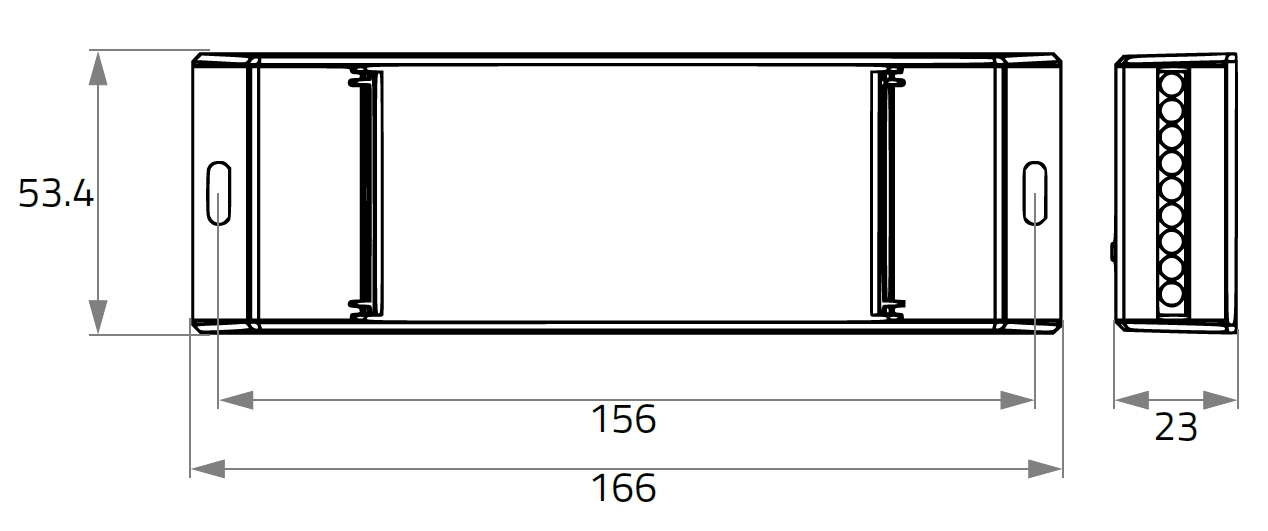

- LxWxH in mm: 166 x 53.4 x 23
- temperature range: -20°C to + 50°C
Technical Data
| BAR code: | 4012094808055 |
|---|---|
| Width: | 53 mm |
| Height: | 23 mm |
| Length: | 166 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 20000 mA |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 240-480 W |
| Catalog color code: | blau |
| Leuchte: | without |
| Input voltage: | 12-24 |
| Output voltage: | 12-24 |
| Gehaeuse code: | Kunststoff |
| Effizienz: | 98 |
| Ecodesign: | not relevant |
