Product number:
80770-V2

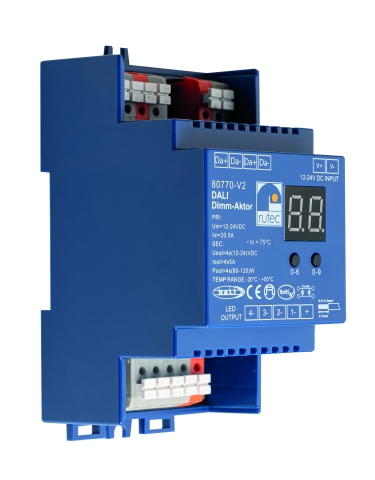

DALI-2 Push Dimm-Aktor DC REG
Product information "DALI-2 Push Dimm-Aktor DC REG"
- rutec DALI-2 dimmer for digital dimming with soft control behavior
- 1 address 4 channels synchronus
- DALI address manually adjustable and visible via digital display
- automatically addressable by master
- according to DALI standard protocoll IEC62386
- IP20
- device type: DT6
- dimming range 0.1-100% logarithmic dimming curve
- protection class III, CE, ROHS, REACH
- protection against short circuit, overtemperature and overload
- input: 12 V - 24 V DC
- output: 12 V - 24 V DC
- power: 4x60 W (12 V DC), 4x120 W (24 V DC)

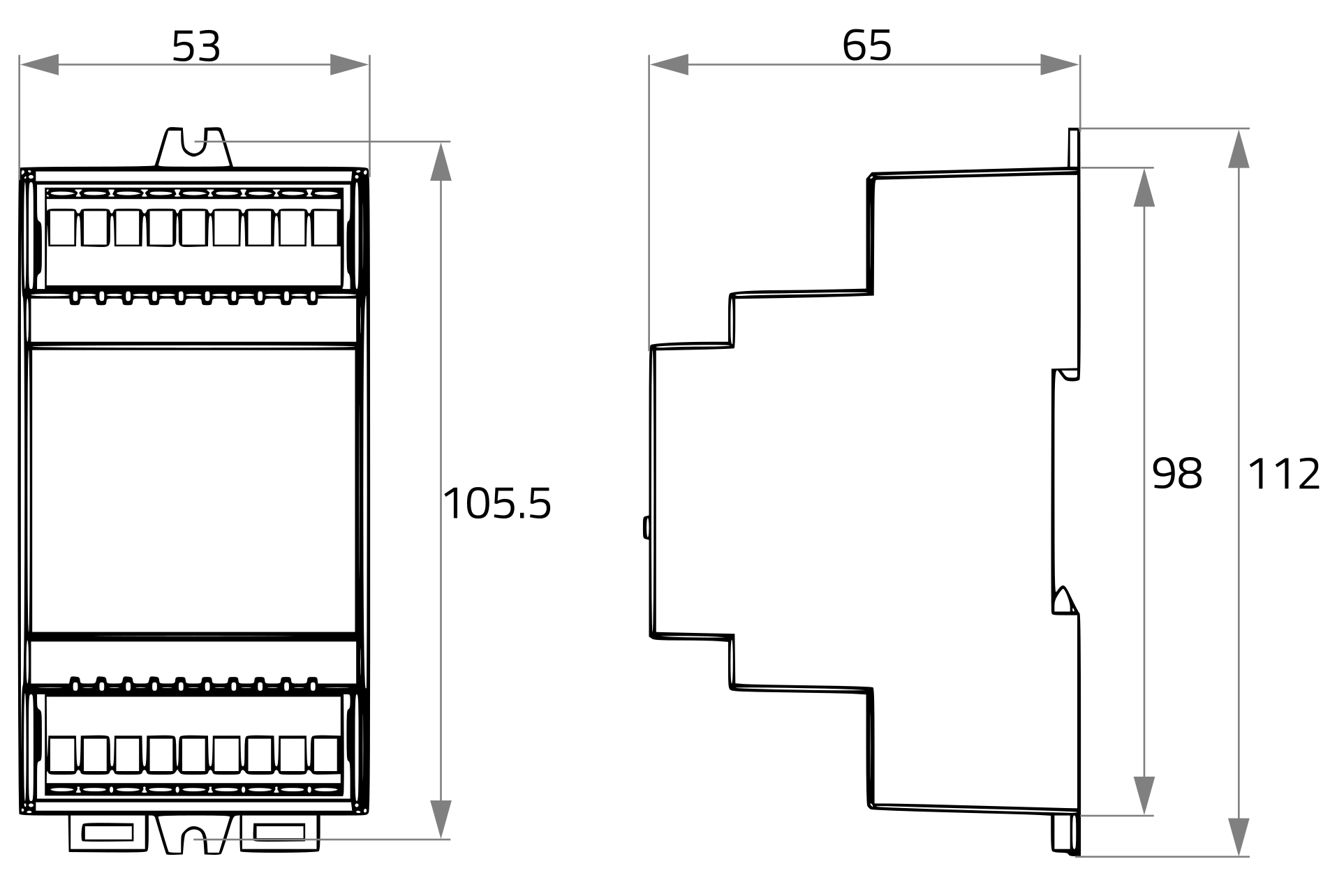

- LxWxH in mm: 112 x 53 x 65
- temperature range: -20°C to +50°C
Technical Data
| BAR code: | 4012094808703 |
|---|---|
| Width: | 53 mm |
| Height: | 65 mm |
| Length: | 112 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 20000 mA |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 240-480 W |
| Catalog color code: | blau |
| Leuchte: | without |
| Input voltage: | 12-24 |
| Output voltage: | 12-24 |
| Gehaeuse code: | Kunststoff |
| Effizienz: | 98 |
| Ecodesign: | not assigned |
