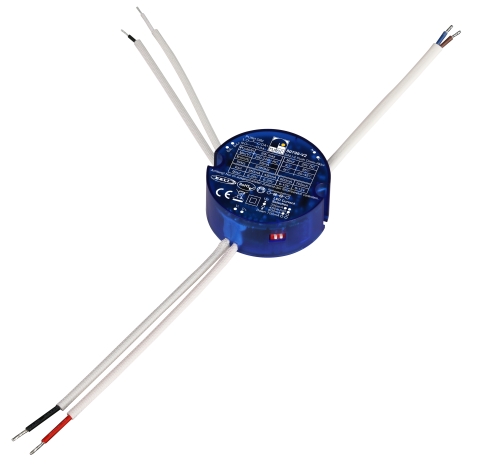

DALI-2 Push Dimm-Aktor AC 9W

DALI-2 DT6 für 350-700mA einfarbig

rutec DALI-2 push dimming actuator AC
1 address - 1 channel single colour
DALI address automatically addressable from
DALI master controller (e.g. gateway)
According to DALI standard protocol OEC62386-101:2014, IEC62386-102:2014, IEC62386-207 Ed2
Suitable for commercially available DALI devices
DALI-2 or Push dim function
for indoor use, IP20
input voltage: 200-240 V AC
Output current adjustable via dip switch: 350mA, 450mA, 600mA, 700mA DC
power: 2-9 watts depending on ouput current (see manual)
device tyoe: DT6
protection class II, CE, RoHS
protection against short circuit, over voltage and over temperature
dimming range: 0.1-100% PWM+CCR, flicker free
temperature range: -20 to +45°C
outer diameter x height in mm: 57 x 24

BAR code:	4012094808994
Height:	24 mm
Unit Code:	piece
Customer discount group code:	ST
Outer diameter:	57 mm
Lumen per LED (lm):	0,00 lm
Current:	350-700 mA
Temperature range:	-20 - 45
IP protection rating:	20
Power:	2-9 W
Catalog color code:	blau
Leuchte:	without
Input voltage:	200-240
Output voltage:	6-25
Gehaeuse code:	Kunststoff
Leerlauf:	not suitable for no load application
Wirkungsgrad Vollast:	85
Geeignete Lichtquelle:	LED
Ecodesign:	seperate control gear
Psb:	0,3
Pnet:	0,34
Pno:	>0,5
