DALI-2 Push Dimm-Aktor AC 50W

DALI-2 DT6 für 350-1500mA einfarbig

rutec DALI-2 push dimming actuator AC
1 address 1 channel single colour
DALI address automatically addressable from
DALI master controller (e.g. gateway)
According to DALI standard protocol IEC62386-101:2014, IEC62386-102:2014, IEC62386-207 Ed2
suitable for commercially available DALI devices
DALI-2 or push dim function
for indoor use, IP20
input voltage: 200-240 V AC
output current adjustable via dip switch: 350mA, 450mA, 500mA, 600mA, 650mA, 750mA, 800mA,
900mA, 950mA, 1050mA, 1100mA, 1200mA, 1250mA, 1350mA, 1400mA, 1500mA DC
power: 2.8-50 watts depending on ouput current (see manual)
device type: DT6
protection class II, CE, ROHS
protection against short circuit, overvoltage and overtemperature
dimming range: 0.1-100% PWM+CCR, flicker free
temperature range: -20°C to +45°C

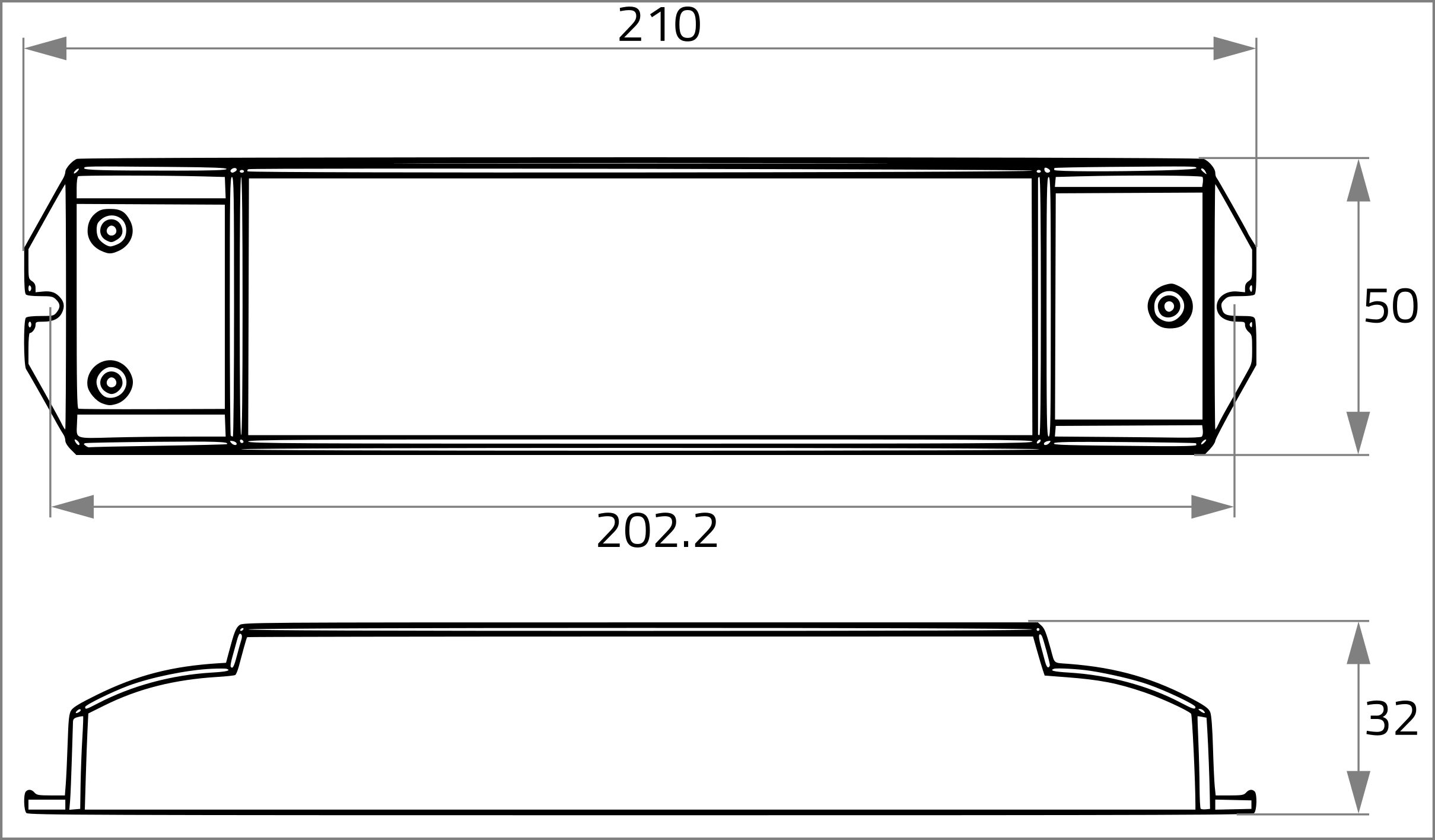

LxWxH in mm: 210 x 50 x 32

BAR code:	4012094808901
Width:	50 mm
Height:	32 mm
Length:	210 mm
Unit Code:	piece
Customer discount group code:	ST
Lumen per LED (lm):	0,00 lm
Current:	350-1500 mA
Temperature range:	-20 - 45
IP protection rating:	20
Power:	2,8-50 W
Catalog color code:	blau
Leuchte:	without
Input voltage:	200-240
Output voltage:	8-52
Gehaeuse code:	Kunststoff
Auslaufartikel:	Yes
Leerlauf:	not suitable for no load application
Wirkungsgrad Vollast:	87
Geeignete Lichtquelle:	LED
Ecodesign:	seperate control gear
Psb:	0,37
Pnet:	0,39
Pno:	>0,5
