Product number:
87742

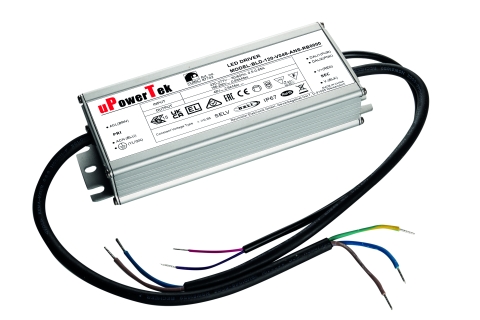

DALI-2 LED Netzgerät 48V 120W IP67 -BLD-120-V048-ANS-RB0000
Product information "DALI-2 LED Netzgerät 48V 120W IP67 -BLD-120-V048-ANS-RB0000"
- DALI-2 dimming actuator AC
- 1 adress 1 channel, single colour
- Automatically addressable by the master
- According to Dali standard protocol IEC61347-2-13
- for indoor and outdoor use
- IP67
- Device Type: DT6
- Protection class I, CE, ROHS, active PFC, SELV, ENEC
- Protection against over voltage, short circuit, overload and over temperature
- Dimming range: 2-100%
- PWM: >1000 Hz
- input voltage: 220-277V AC 50/60 Hz, 186-250V DC
- power: 120 W
- output voltage: 48V DC

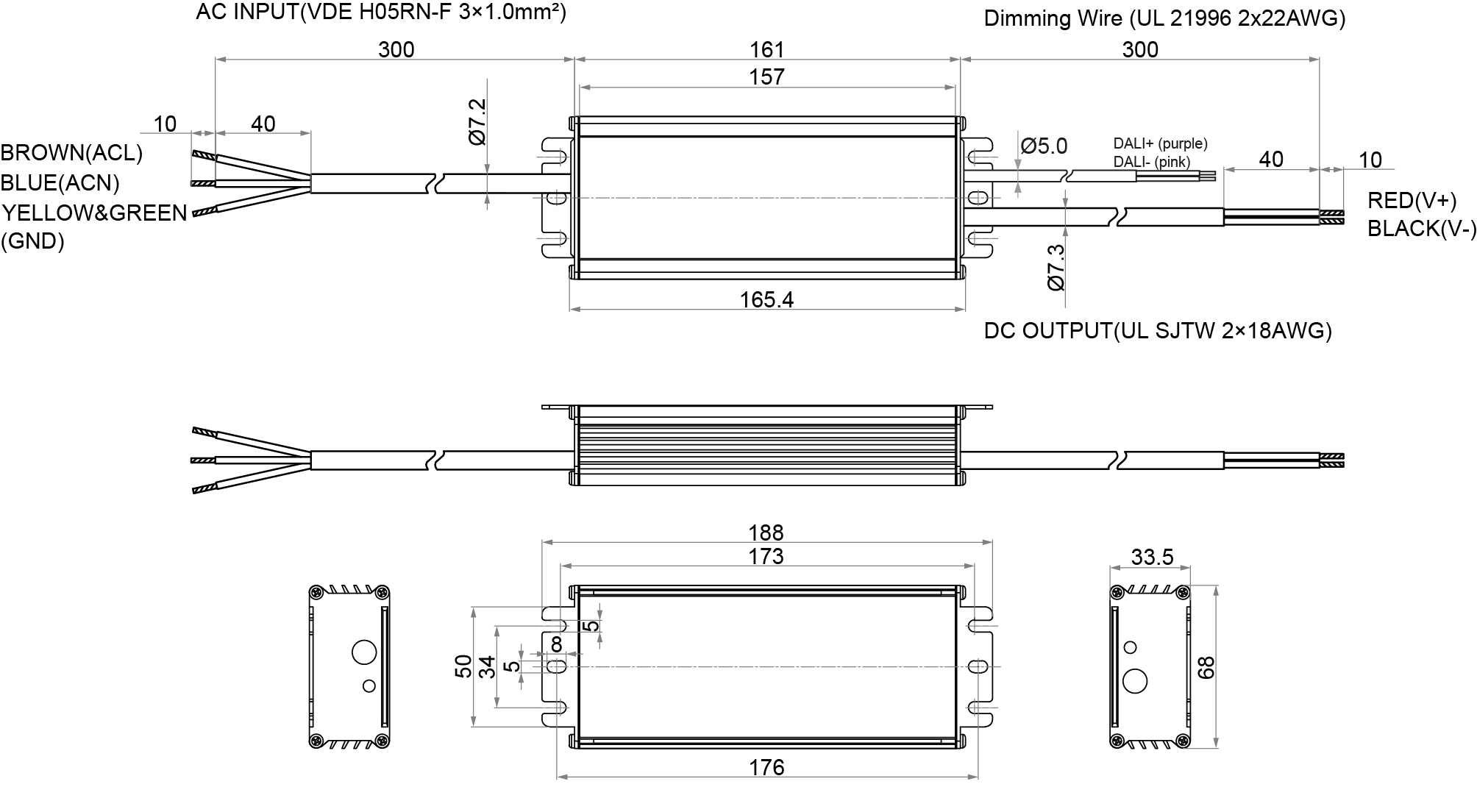

- LxWxH in mm: 188 x 68 x 33.5
- temperature range: -40° C to +50° C
Technical Data
| BAR code: | 4012094877426 |
|---|---|
| Width: | 68 mm |
| Height: | 33 mm |
| Length: | 188 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 2500 mA |
| Temperature range: | -40 - 50 |
| IP protection rating: | 67 |
| Power: | 120 W |
| Catalog color code: | aluminium |
| Leuchte: | without |
| Input voltage: | 220-277 |
| Output voltage: | 48 |
| Gehaeuse code: | Aluminium |
| Toleranz: | 3 |
| Leerlauf: | not suitable for no load application |
| Wirkungsgrad Vollast: | 89 |
| Geeignete Lichtquelle: | LED |
| Ecodesign: | seperate control gear |
| Psb: | 0,44 |
| Pnet: | 0,47 |
| Pno: | >0,5 |
