CE
DALI2
Disposal instructions according to 2012/19/EU
Independent converter
Low voltage correction
Parallel connection
Power factor correction
Protection class I
RoHS
Short circuit protection
Product number:
85783-V2

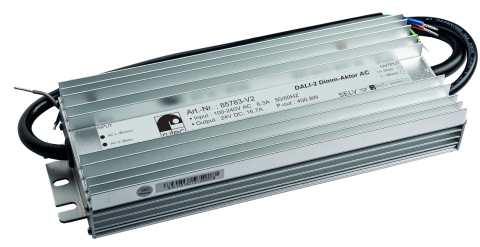

DALI-2 Dimm-Aktor AC 400,8W
Product information "DALI-2 Dimm-Aktor AC 400,8W"
- DALI-2 dimming actuator AC 400.8W
- 1 adress 1 channel, single colour
- Automatically addressable by the master
- According to Dali standard protocol IEC62386-101 ed2, -102 ed2, -207 ed1
- for indoor and outdoor use
- IP67
- Device Type: DT6
- Protection class I, CE, ROHS, active PFC, SELV
- Protection against short circuit, overload, over temperature and over voltage
- Dimming range: 1-100%
- PWM: >1600 Hz
- Input AC: 100-240V AC
- Output: 400.8 W 24 V DC

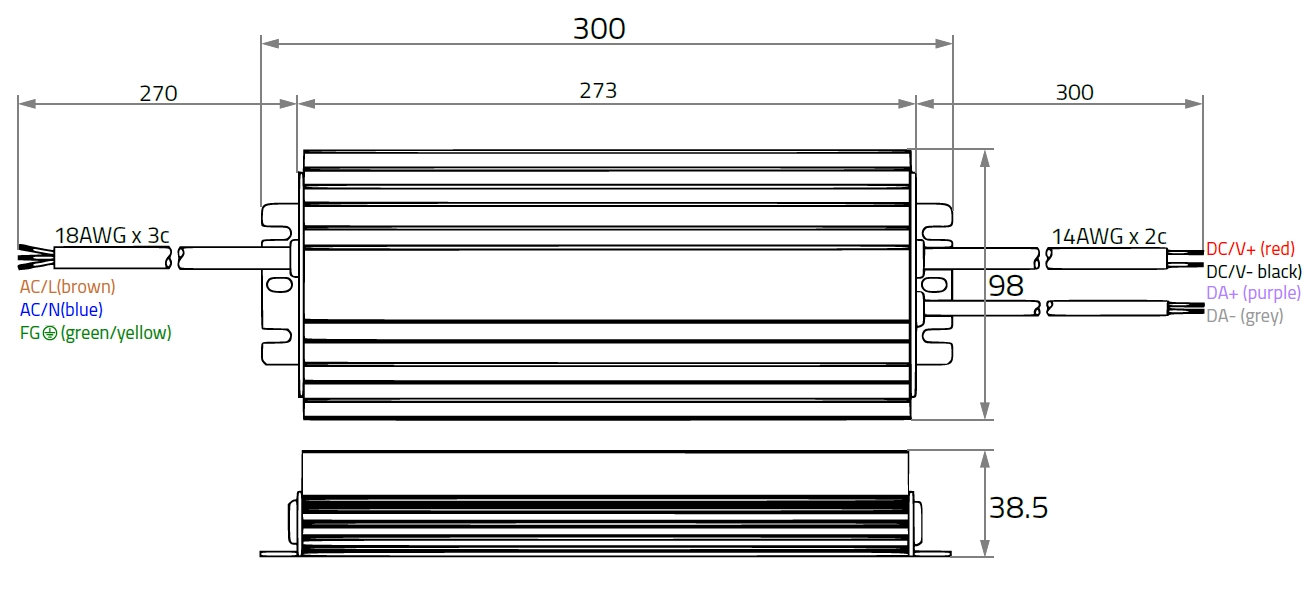

- Dimensions in mm: 300 x 98 x 38.5
- Temperature range: -30° C up to +50° C
Technical Data
| BAR code: | 4012094257839 |
|---|---|
| Width: | 98 mm |
| Height: | 38 mm |
| Length: | 300 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 16,7 mA |
| Temperature range: | -30 - 50 |
| IP protection rating: | 67 |
| Power: | 400,8 W |
| Catalog color code: | aluminium |
| Leuchte: | without |
| Input voltage: | 100-240 |
| Output voltage: | 24 |
| Gehaeuse code: | Aluminium |
| Toleranz: | 5 |
| Leerlauf: | not suitable for no load application |
| Wirkungsgrad Vollast: | 93 |
| Geeignete Lichtquelle: | LED |
| Ecodesign: | seperate control gear |
| Psb: | 0,39 |
| Pnet: | 0,41 |
| Pno: | 0,80 |
