CE
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
RoHS
Series connection
Product number:
R57891WWOK

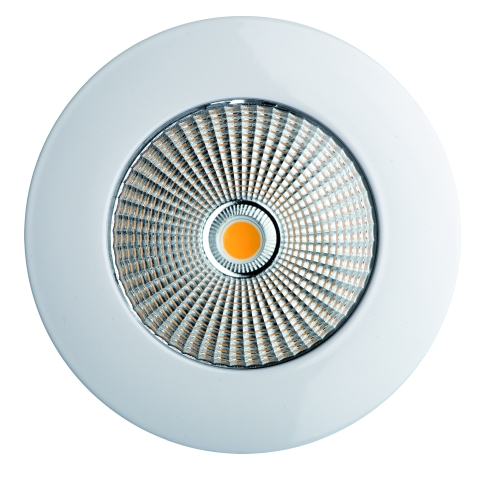

Calina LED EBS 13W IP 54 o.Konverter
Product information "Calina LED EBS 13W IP 54 o.Konverter"
- for indoor use, IP54
- front cover changeable
- housing: diecast aluminum, protection glass
- housing color: white
- not swivelling
- beam angle: 35°
- power: 13 W
- light color: 3000 K
- luminous flux: 1.000 lm
- CRI: >90
- lifetime L70: >= 72.000 h
- input: 350 mA DC
- protection class III
- installation depth: 70 mm
- ceiling cut-out: 81 mm
- outer diameter: 100 mm
- energie efficiency class: A
- not included LED converter
Technical Data
| BAR code: | 4012094578910 |
|---|---|
| Unit Code: | piece |
| Customer discount group code: | R1 |
| Installation diameter: | 81 mm |
| Outer diameter: | 100 mm |
| Lumen per fixture (lm): | 1000 lm |
| Lumen per LED (lm): | 1000,00 lm |
| Current: | 350 mA |
| Installation depth: | 70 mm |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 76,92 |
| IP protection rating: | 54 |
| Power: | 13 W |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 35 Grad ° |
| Sockel code: | ohne |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Re skus: | 57050,57051,57052,57053,57054,57055,57056,57057,57058,57059,57060,57061,57062,80790,85443 |
| Auslaufartikel: | Yes |
| L70: | 72000 |
| Ecodesign: | not assigned |
