CE
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
RoHS
Series connection
Without snap ring
Product number:
42251-V2

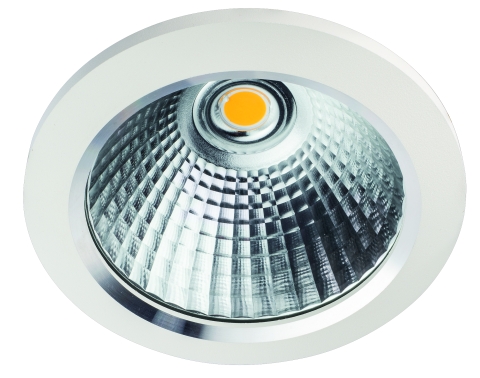

CALA - 25W IP43 36° 600mA
Product information "CALA - 25W IP43 36° 600mA"
- Citizen COB LED
- for indoor use, IP43
- Housing: diecast aluminium (protection glass, clear)
- Housing colour: sandwhite
- Beam angle: 36°
- Power: 25 W
- Light colour: 3000 K
- Luminous flux: 2596 lm
- CRI: >80
- Lifespan L70B50: >= 50.000 h
- Operating current: 600 mA
- protection class III
- Installation depth: 151 mm
- Ceiling cut-out: 125 mm
- Outer diameter: 142 mm
- Energie efficiency class: E
Technical Data
| BAR code: | 4012094022512 |
|---|---|
| Unit Code: | piece |
| Customer discount group code: | SL |
| Installation diameter: | 125 mm |
| Outer diameter: | 142 mm |
| Lumen per fixture (lm): | 2596 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 600 mA |
| Installation depth: | 151 mm |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 103,84 |
| IP protection rating: | 43 |
| Power: | 25 W |
| Energy efficiency class: | EEK-Label_E |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 36 Grad ° |
| Sockel code: | ohne |
| Gehaeuse code: | Aluminium |
| Auslaufartikel: | Yes |
| L70: | 60000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Service life L90B10: | 10000 |
