CE
Only suitable for indoor installations
RoHS
Product number:
68405

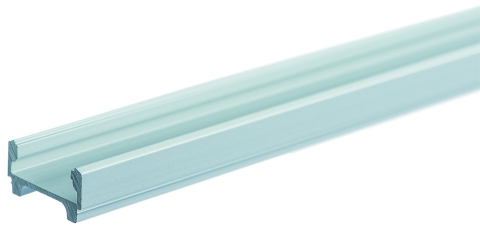

Aluprofil Flach 23/12
Product information "Aluprofil Flach 23/12"
- Standard Aluminium profile, wide selection of covers and mounting clamps
- internal size for strips up to a width of 18,2 mm
- for indoor use
- Material: aluminium anodised

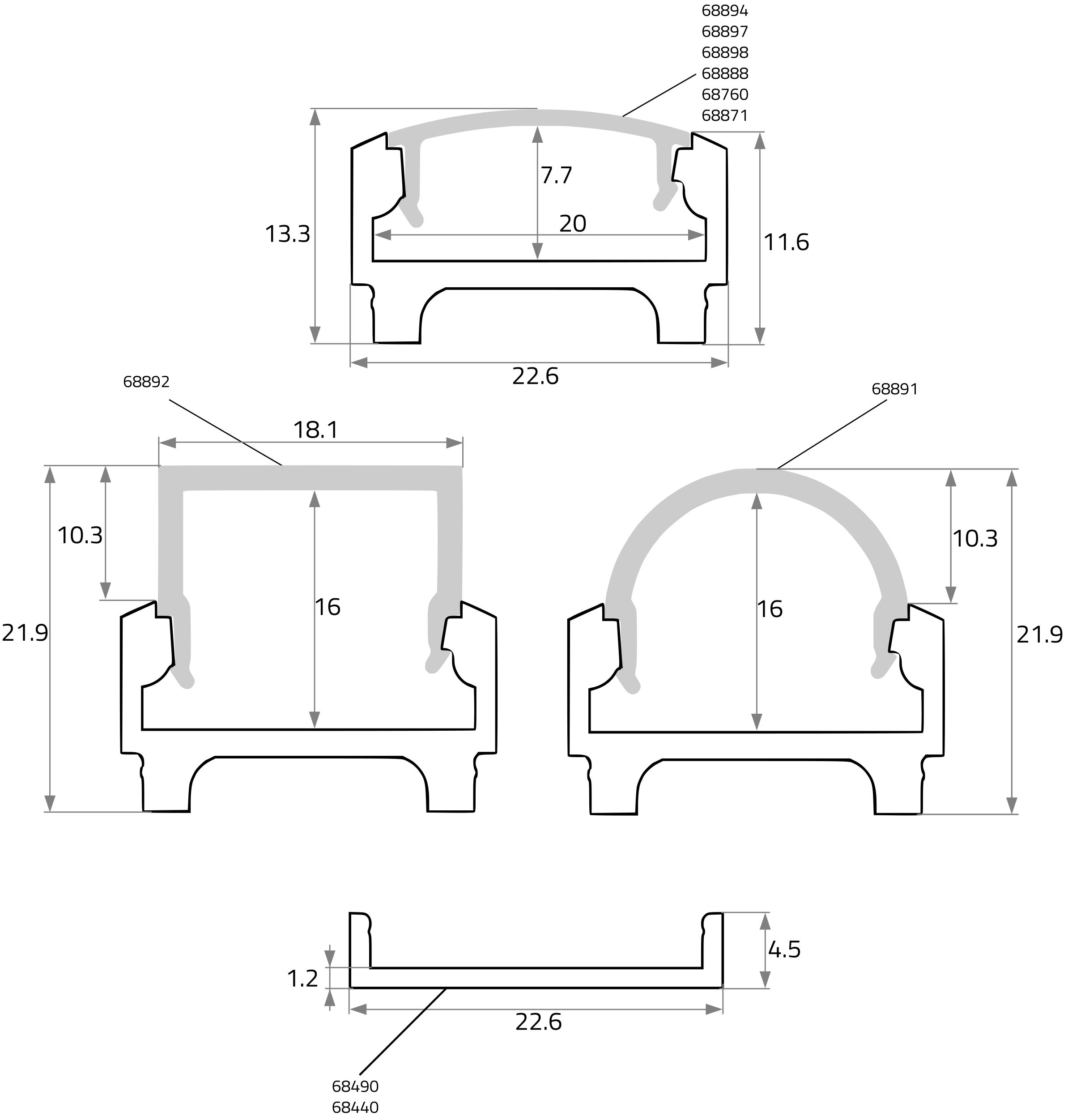

- LxWxH in mm: 2.000 x 22.6 x 11.8
- Delivery notice: Delivery without cover, end caps and
- mounting clamps - please order them separately
Technical Data
| BAR code: | 4012094684055 |
|---|---|
| Width: | 22 mm |
| Height: | 11 mm |
| Length: | 2000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Temperature range: | -20 - 70 |
| IP protection rating: | 20 |
| Catalog color code: | aluminium |
| Leuchte: | without |
| Gehaeuse code: | Aluminium |
| Re skus: | 68487,68488,68490 |
| Ecodesign: | not assigned |
