Product number:
ALU55472-M

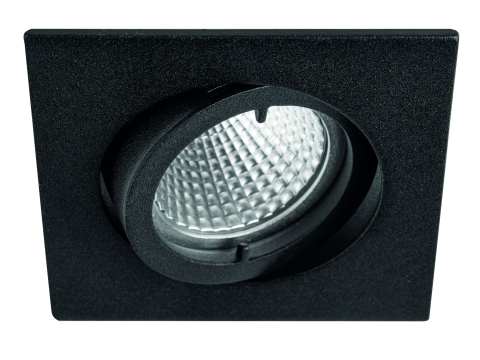

ALU-Druckguss Einbaustrahler
Product information "ALU-Druckguss Einbaustrahler"
- Item No. ALU5547+Color Code
- Without Snap-Ring, Adjustable
- Square, for 50 mm Light Bulbs
- For Indoor Use
- Aluminum Die Casting Downlight
- 30° Adjustable
- Light Bulb Replacement With A Bayonet Clasp
- Excluding: Light Bulb

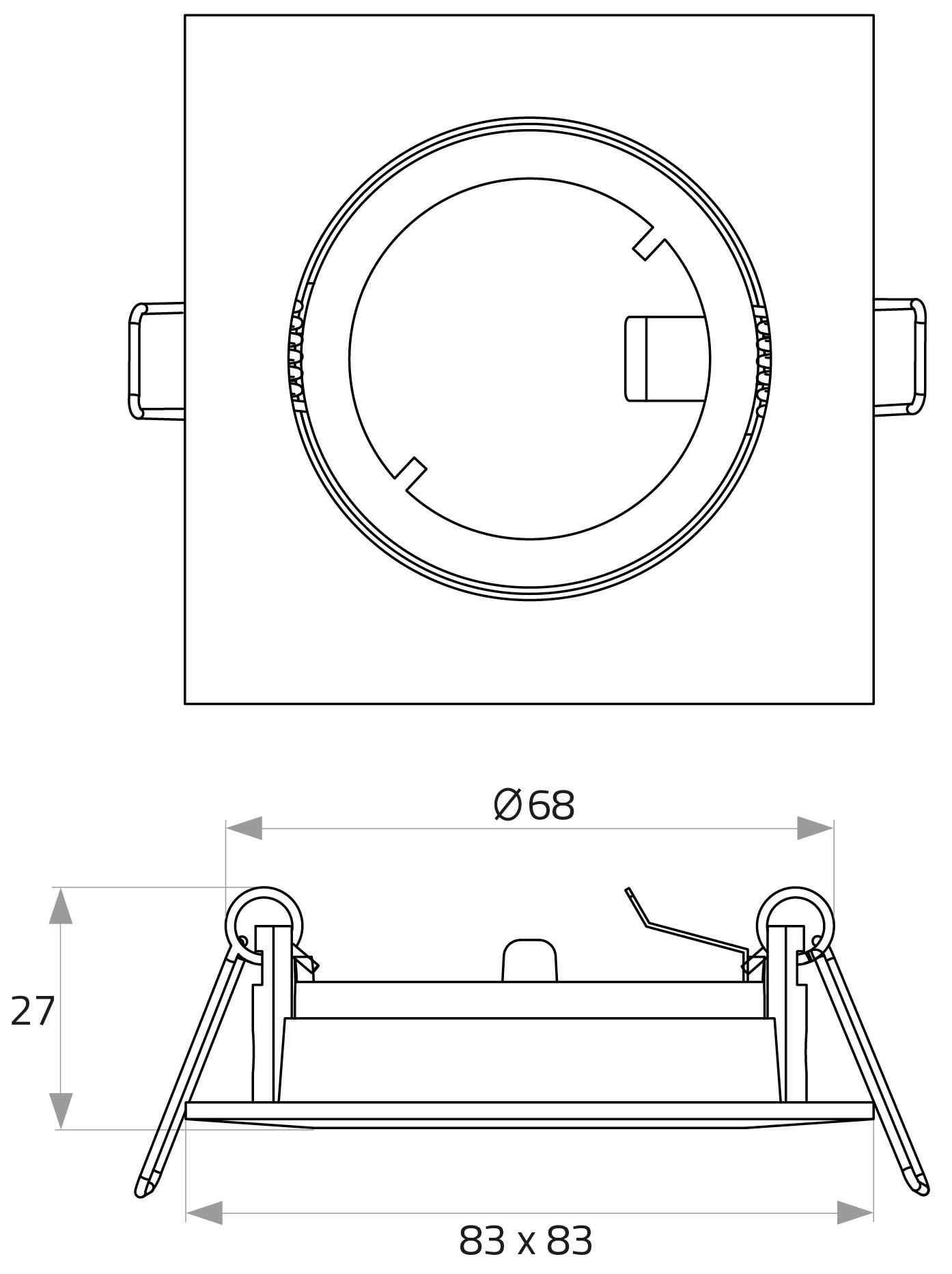

Technical Data
| BAR code: | 4012094154725 |
|---|---|
| Width: | 83 mm |
| Height: | 27 mm |
| Length: | 83 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Installation diameter: | 68 mm |
| Booformat eckig: | Yes |
| Lumen per LED (lm): | 0,00 lm |
| Temperature range: | to 70 |
| IP protection rating: | 20 |
| Power: | 1-50 W |
| Catalog color code: | schwarz matt |
| Leuchte: | without |
| Sockel code: | ohne |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Ecodesign: | not assigned |
