Product number:
80540
AC-Funk Touchpanel 4 ZONEN RGBW
Product information "AC-Funk Touchpanel 4 ZONEN RGBW"
- Radio touch panel, 4 zones RGBW, including power supply for 230 V AC connection
- for indoor use
- Material: plastic/glass, black
- IP20
- Protection class II, CE, RoHS
- Voltage: 100 - 230 V AC, 50 Hz
- Standby power: 1.2 W
- Transmission power: max. 1.5 W
- Remote control range: 30 metres with cler view
- Carrier frequency: 868 MHz
- Maximum cable cross-section at terminal: 1.5 sq mm
- Control up to 4 zones independently
- highly sensitive touch colour wheel
- quick, precise colour control
- Selection of 10 different preprogrammed colour gradients
- dimming and switching of single and mixed colors
- per zone: 4 memory functions for colour scene or - sequence
- storable up to 8 touch panels per radio receiver
- (excecpt for 80460/80560)

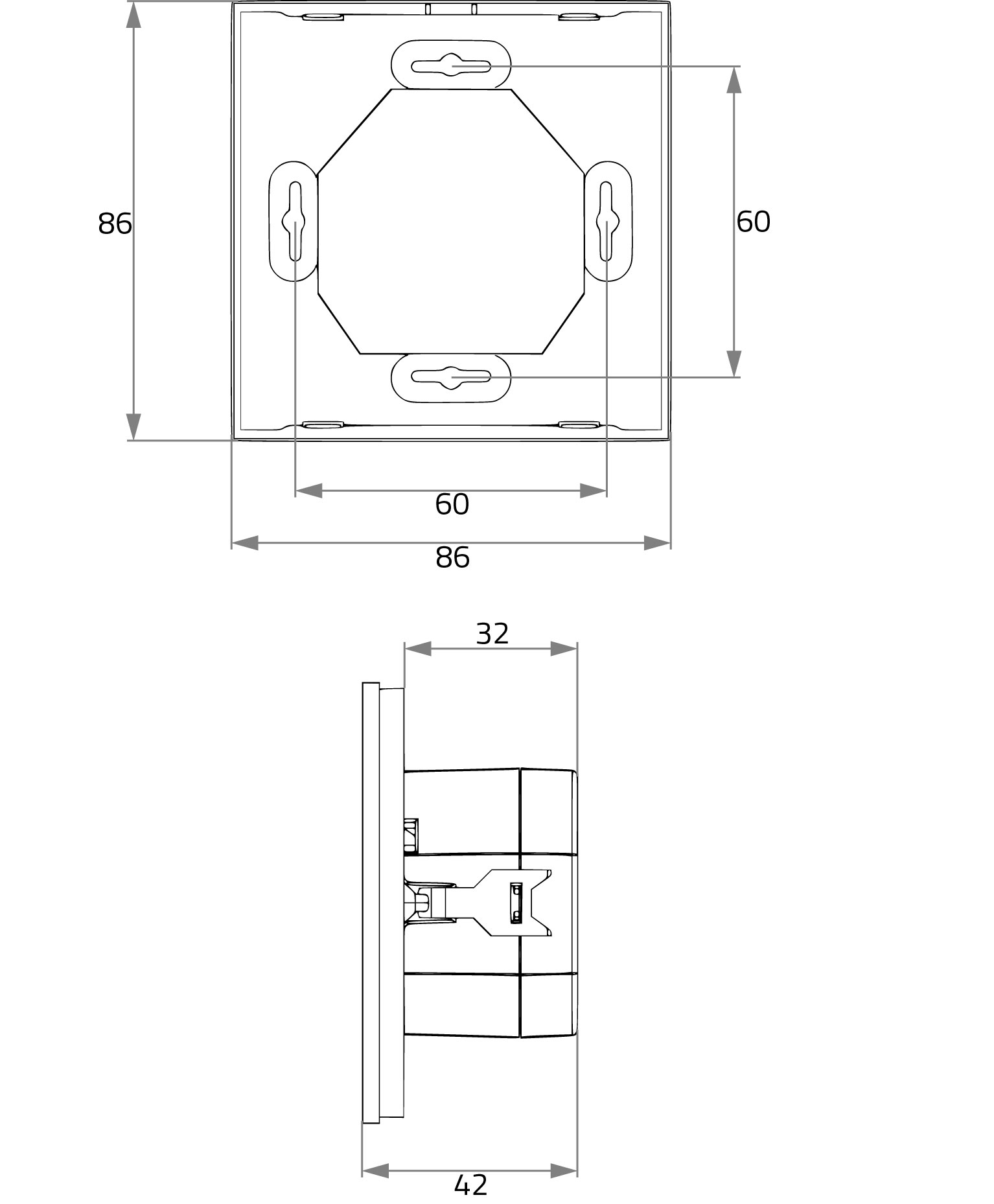

Technical Data
| BAR code: | 4012094805405 |
|---|---|
| Width: | 86 mm |
| Height: | 42 mm |
| Length: | 86 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Installation diameter: | 55 mm |
| Lumen per LED (lm): | 0,00 lm |
| Installation depth: | 34 mm |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 2 W |
| Catalog color code: | schwarz |
| Leuchte: | without |
| Input voltage: | 100-240 |
| Gehaeuse code: | Glas |
| Re skus: | 80462 |
| Ecodesign: | not assigned |
