Product number:
80530
AC-DALI DT6 Touchpanel 4 ZONEN RGBW
Product information "AC-DALI DT6 Touchpanel 4 ZONEN RGBW"
- DALI touch panel, 4 zones RGBW, including power supply for 230 V AC connection
- for indoor use
- Material: plastic, glass
- IP20
- Protection class II, CE, RoHS
- Voltage: 100 - 230 V AC, 50 Hz
- Standby power: 1,5 W
- Transmission power: max. 4 W
- Signal: DALI
- Device Type: DT6
- Maximum cable cross-section at terminal: 1.5 sq mm
- DALI start address manually adjustable via 2 potentiometer
- per zone: address management of 4 addresses possible
- in acc. w. DALI standard protocol IEC 62386-102, IC 62386-207
- suitable for standard DALI devices
- Dimmer range 0.1 - 100 %
- Control up to 4 zones independently
- highly sensitive touch colour wheel
- quick, precise colour control
- Selection of 10 different preprogrammed colour gradients
- dimming and switching of single and mixed colors
- per zone: 4 memory functions for colour scene or - sequence
- several DALI touch panels per DALI bus line possible
Technical Data
| BAR code: | 4012094805306 |
|---|---|

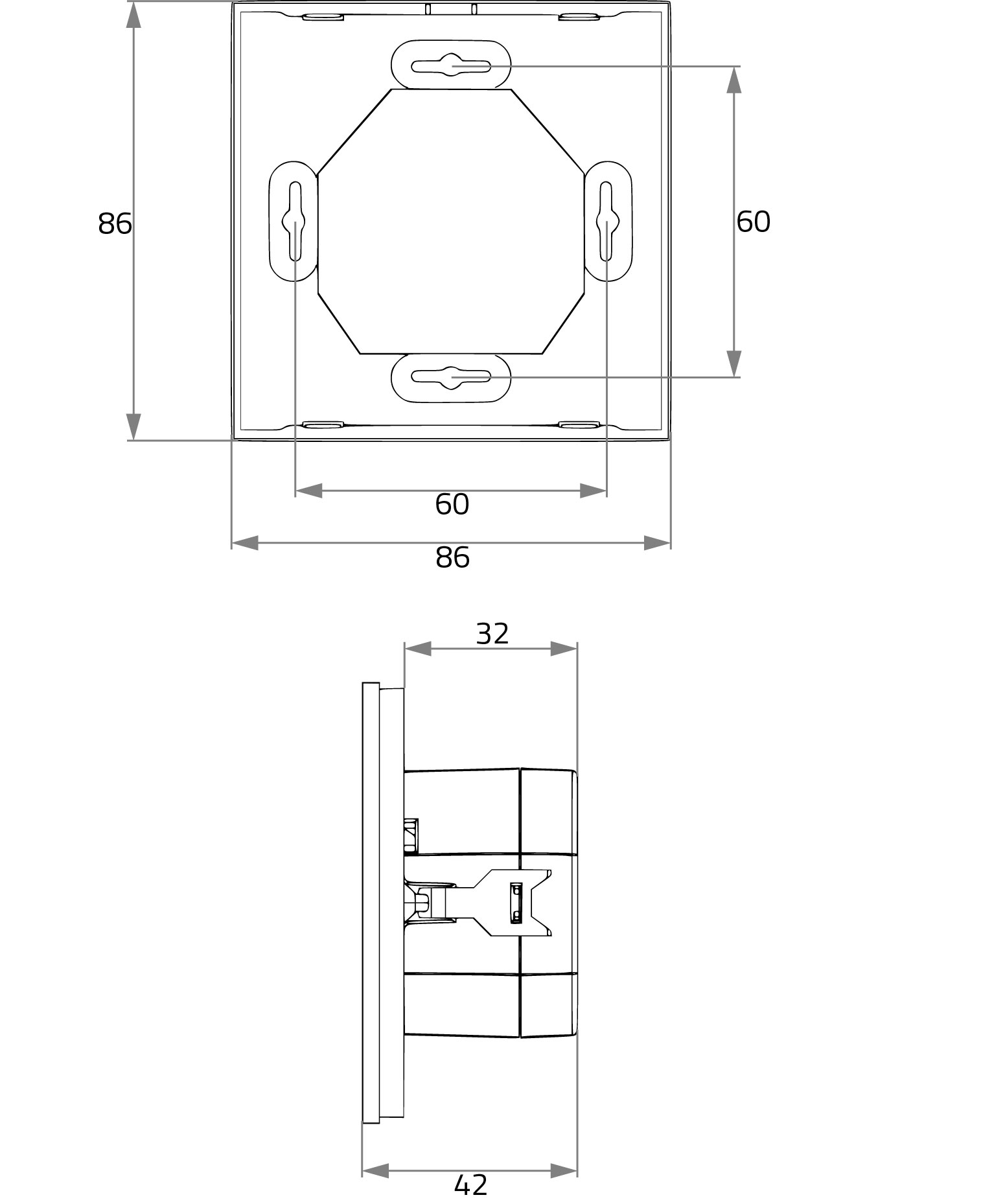

| Width: | 86 mm |
| Height: | 42 mm |
| Length: | 86 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Installation diameter: | 55 mm |
| Lumen per LED (lm): | 0,00 lm |
| Installation depth: | 50 mm |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 2 W |
| Catalog color code: | schwarz |
| Leuchte: | without |
| Input voltage: | 100-240 |
| Gehaeuse code: | Glas |
| Ecodesign: | not assigned |
